Control and Quality Gates

Overview

Control gates are checkpoints in your software supply chain that enforce specific policies and security checks. They ensure that only compliant artifacts and pieces of evidence progress through the pipeline, enhancing the overall security and integrity of your software delivery process. Control gates can be configured to evaluate various criteria, such as vulnerability scans, license compliance, code quality metrics, and more. By implementing control gates, organizations can automate the enforcement of security and compliance standards, reducing the risk of introducing vulnerabilities into production environments.

Implementing Control and Quality Gates with Chainloop

In Chainloop, control gates are implemented through policies that are evaluated against pieces of evidence (materials), entire attestation documents, or stored compliance data. These policies serve as acceptance criteria for the organization to ingest those materials or to proceed with further steps in the software supply chain. If a control gate policy evaluation fails, the CLI command chainloop attestation push will return a non-zero exit code but the attestation is still sent to Chainloop. This approach ensures that all activities are tracked, even those that do not meet compliance standards.

Configuring enforcement

Policies enforcement (gating) can be configured as a default for the organization and/or on a per policy basis.

Organization default

Global policy enforcement can be set globally by organization administrators. This will affect to all products and contracts within the organization. Please refer to Policies section for further reference. By selecting this option you’ll be effectively blocking the pipeline workflow runs that do not meet the compliance standards.

Web UI
CLI

To enable organization-wide control gates, navigate to the Organization Settings in the Chainloop Web UI (only available in paid plans) and set the “Policy Violation Strategy” to “Enforced”.

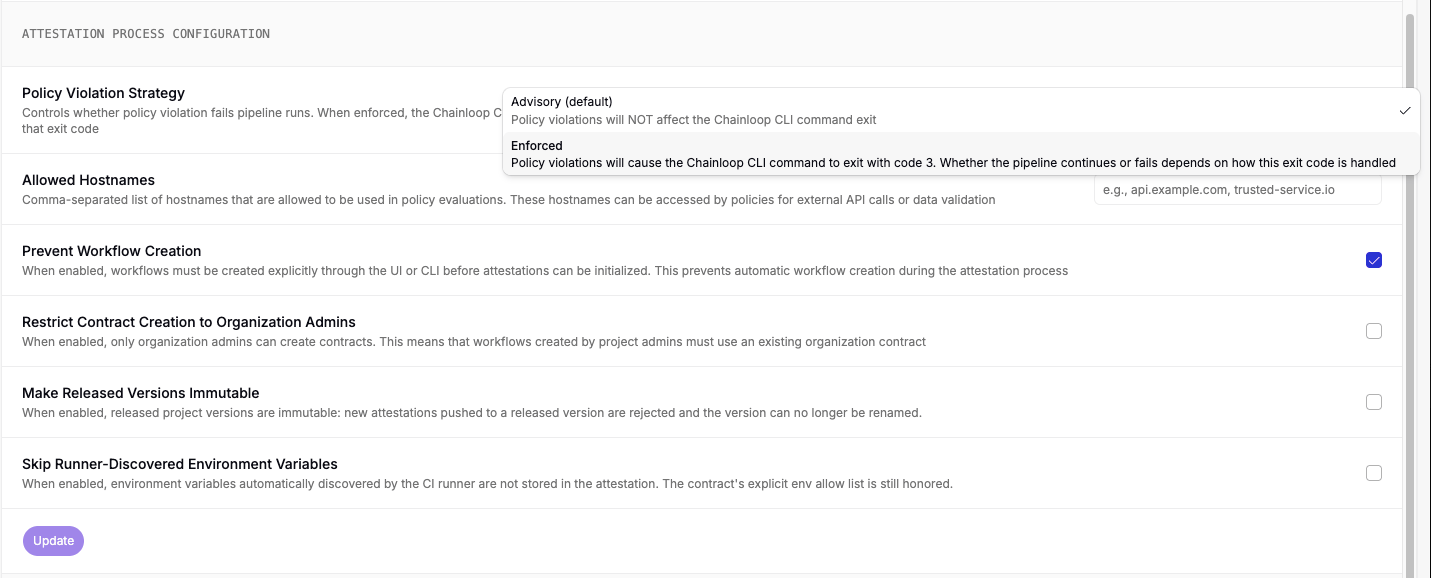

The Policy Violation Strategy setting in the organization settings

Use the chainloop org update --block command to set organization-wide control gate policies.

> chainloop org update --name silly-greider-943 --block
INF Organization updated!
> chainloop org describe
┌────────────────────────────────────────────────────────────────────────────────┐
│ Current Context                                                                │
├─────────────────────┬──────────────────────────────────────────────────────────┤
│ Logged in as        │ John <[email protected]v>                                │
├─────────────────────┼──────────────────────────────────────────────────────────┤
│ Organization        │ silly-greider-943 (role=owner)                           │
│                     │ Policy strategy=ENFORCED                                 │
├─────────────────────┼──────────────────────────────────────────────────────────┤
│ Default CAS Backend │ my-backend (provider=OCI, status="valid")                │
└─────────────────────┴──────────────────────────────────────────────────────────┘

Set block to false to disable organization-wide control gates.

> chainloop org update --name silly-greider-943 --block=false

Fine-grained per policy

You can control gating on a per-policy basis by setting the gate property in the policy attachment in the contract. This allows for more granular control over specific products or services, and overrides the organization-wide setting.

Value	Behavior
`gate: true`	Enforce this policy as a control gate
`gate: false`	Explicitly disable gating for this policy, even if org-wide enforcement is enabled
omitted	Inherit the organization default

# Workflow Contract
apiVersion: chainloop.dev/v1
kind: Contract
metadata:
  name: gated-release
  description: perform QA checks before releasing
spec:
  policies:
    attestation:
      - ref: my-control-gate-policy
        gate: true # This policy acts as a control gate
      - ref: my-informational-policy
        gate: false # Explicitly opt out of gating, even if org-wide enforcement is on

Using control gates in your CI/CD pipeline

A typical use case for control gates is to enforce security checks before allowing an artifact to be promoted to production. For example, you might want to ensure that no critical vulnerabilities are present in the codebase before proceeding with a release. This will be usually done in the CI/CD pipeline, where the chainloop attestation push command is executed after running security scans and tests. If the control gate policies are not met, the pipeline can be configured to halt further steps, preventing non-compliant artifacts from being deployed.

# Example CI/CD pipeline snippet
jobs:
  compliance:
    runs-on: ubuntu-latest

    steps:
      - name: Check security compliance
        run: |
          # initialize the attestation with the relevant workflow already configured with the gated contract
          chainloop attestation init --workflow security-compliance-check --project my-project
          # add any additional materials (optional)
          chainloop attestation add --name my-material --value ./path/to/material

          # push the attestation, this will evaluate the control gate policies and block if they fail
          chainloop attestation push

When a control gate policy is evaluated, if it fails, the chainloop attestation push command will return a non-zero exit code, indicating that the attestation did not pass the required checks. This mechanism helps prevent non-compliant artifacts from progressing through the CI/CD pipeline.

CLI output of a push blocked by an enforced policy

Note that even though the pipeline is blocked, the attestation is still sent to Chainloop and recorded as “not compliant.” This ensures that all activities are tracked, including those that fail to meet compliance standards.

Bypassing Control Gates

While blocking pipelines with control gates is essential for maintaining security and compliance standards, there are situations where an exception can be granted. Option 1: Server-side requirement exception If the control gate is based on a compliance control (see example below), you can perform an exception for the requirement in the Chainloop UI to allow the gate to continue.

The Flag as Exception dialog with the rationale field

Option 2: Development bypass There are situations where developers may need to bypass these checks temporarily. For example, during urgent hotfixes or when investigating false positives, for that chainloop provides the --exception-bypass-policy-check flag to handle these scenarios: Chainloop provides the --exception-bypass-policy-check flag to handle these scenarios:

chainloop attestation push --exception-bypass-policy-check

When this flag is used, the CI/CD pipeline will run as expected, even if control gate policies fail. However, the bypass is not silent—the exception is recorded in Chainloop and exposed to the compliance team for verification. This ensures accountability while providing flexibility for developers.

A workflow run showing the recorded enforcement bypass

This approach balances the need for strict enforcement with practical flexibility, allowing security and compliance teams to review and address exceptions as part of their regular governance processes.

Examples

The examples below implement custom policies that leverage the following built-in functions to access project-scoped data

chainloop.project_compliance - to access project-scoped compliance data
chainloop.evidence - to access attestations and materials
chainloop.discover - to access artifact metadata and dependencies

Note that these functions are only available on Chainloop’s platform paid plans but control gates can be implemented using custom policies even on free plans.

Example 1: check compliance requirements for my project

Chainloop provides a built-in policy called check-compliance-requirement that can be used to check compliance requirements for a project. To use it, just attach it to a contract and set the gate flag to true. In the example below, the contract is configured to check that the project version being attested meets the “no-vulnerabilities-high” and “sbom-compliance” compliance requirements defined in the builtin framework “Chainloop Best Practices”.

You can implement similar custom policies leveraging the chainloop.project_compliance built-in function.

apiVersion: chainloop.dev/v1
kind: Contract
metadata:
  name: release-gate
  description: An example of control gate that makes sure that the requirements no-vulnerabilities-high and sbom-compliance are met
spec:
  policies:
    attestation:
      - ref: check-compliance-requirement
        with:
          # if you omit the requirement_name, the policy will check all compliance requirements for the project
          requirement_name: no-vulnerabilities-high,sbom-compliance
        gate: true

If the requirements are not met, like in the image below, the policy will trigger a violation, effectively acting as a control gate to block the attestation from being accepted.

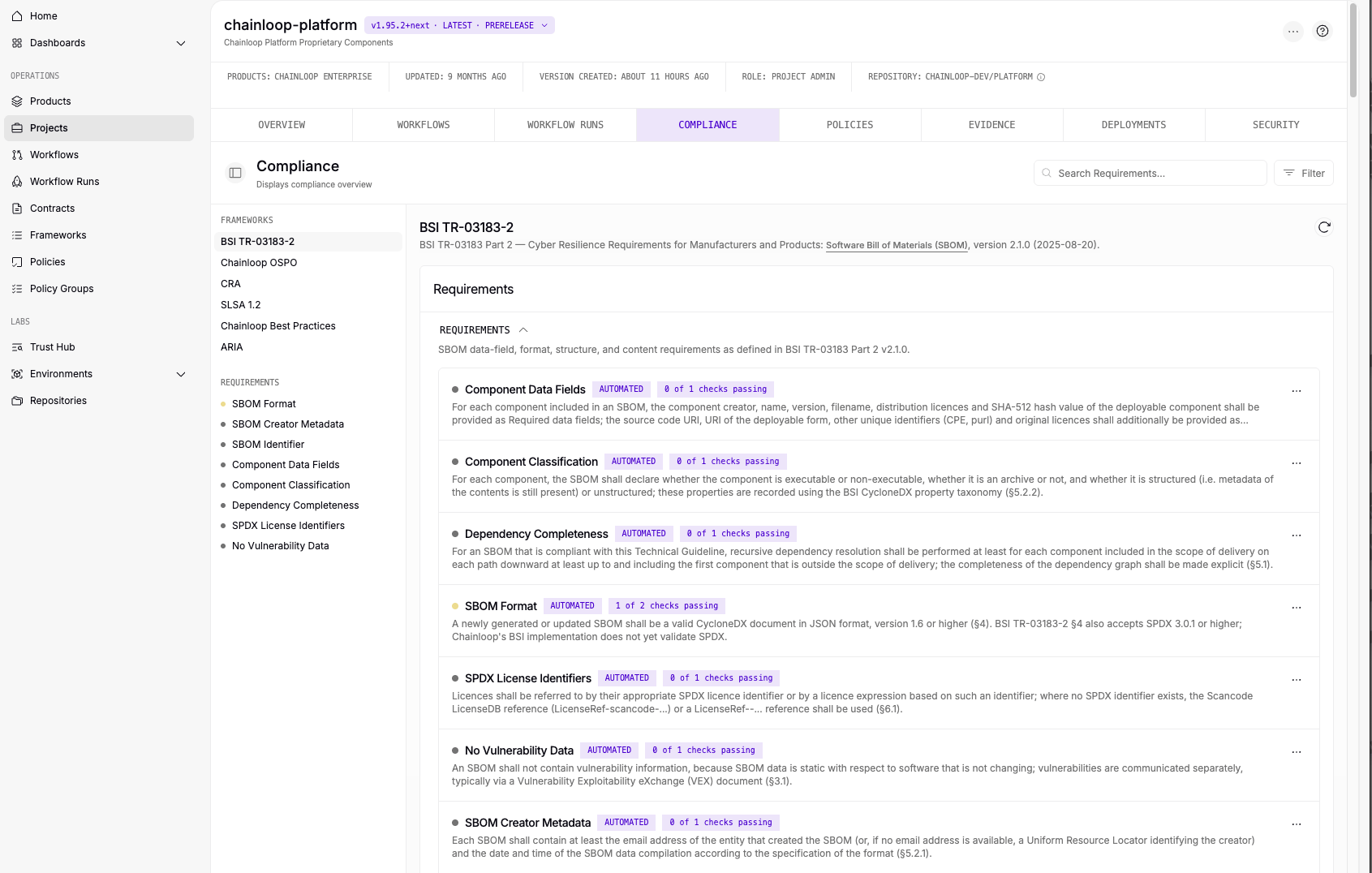

The project compliance view with requirements failing their checks

Note that to bypass the control gate, you can perform an exception for the requirement in the Chainloop UI.

Note that this example uses the chainloop.project_compliance built-in function which is only available for paid plans.

# Policy
apiVersion: workflowcontract.chainloop.dev/v1
kind: Policy
metadata:
  name: cve-compliance-gate
  description: checks that the no-vulnerabilities-high compliance requirement is met
spec:
  policies:
    - kind: ATTESTATION
      embedded: |
        package main
        import rego.v1

        # CVE compliance checks
        violations contains msg if {
            compliance := chainloop.project_compliance({
              "project_name": input.predicate.metadata.project,
              "project_version_name": input.predicate.metadata.projectVersion,
            })
            some ev in compliance.evaluations
            ev.name == "no-vulnerabilities-high"
            ev.status == "fail"

            msg:= sprintf("project %s version %s has high severity vulnerabilities", [input.predicate.metadata.project, input.predicate.metadata.projectVersion])
        }

Example 2: check required pieces of evidence

In this example, we’ll instead implement a custom policy to check that an SBOM is attached to the staging release attestation for the current project version.

# Policy
apiVersion: workflowcontract.chainloop.dev/v1
kind: Policy
metadata:
  name: gate-required-sbom
  description: Checks that the an SBOM is attached to the staging release attestation
spec:
  policies:
    - kind: ATTESTATION
      embedded: |
        package main
        import rego.v1

        # Find staging release (a "release-staging" workflow attestation should exist in the project version) using the built-in evidence function
        staging_att := att if {
            attestations := chainloop.evidence({
                "project_name": input.predicate.metadata.project,
                "project_version_name": input.predicate.metadata.projectVersion,
                "kind": "ATTESTATION",
            })
            some att in attestations.results
            att.workflow_name == "release-staging"
        }

        # Find an SBOM in the attestation using the built-in discovery function
        has_sbom(att) if {
            graph := chainloop.discover(att.digest, "")
            some ref in graph.references
            ref.kind == "SBOM_CYCLONEDX_JSON"
        }

        violations contains msg if {
            not staging_att

            msg:= sprintf("project %s version %s not fully released to staging yet", [input.predicate.metadata.project, input.predicate.metadata.projectVersion])
        }

        violations contains msg if {
            staging_att
            not has_sbom(staging_att)

            msg:= sprintf("staging release attestation for project %s version %s does not have an SBOM", [input.predicate.metadata.project, input.predicate.metadata.projectVersion])
        }
