Use Keyfactor EJBCA to generate ephemeral signing certificates

Summary

Chainloop Evidence Store can be configured to generate signing certs by using EJBCA as the certificate authority, when signing in “key-less” mode: EJBCA is a popular open source PKI, check it out at https://www.ejbca.org/.

Prerequisites:

If your organization doesn’t have it already, you can follow these tutorials for a basic setup of EJBCA PKI solution. Requirements:

EJBCA is deployed following the Quick Start Guide - Start EJBCA Container with Client Certificate Authenticated Access
EJBCA is configured for issuing signing certificates. Check the certificate request and installation steps at Sign Container Images with Cosign and SignServer
EJBCA Certificate Management APIs are enabled.

Configure Chainloop to use EJBCA as CA

Check ejbca_cA section in Chainloop configuration options. In particular, set these values in your config.yaml (these values are also mapped to the chart values.yaml file):

certificate_authorities:
  - ejbca_ca:
      # Where EJBCA service is located
      server_url: "https://localhost/ejbca"

      # Cert and private key for Client cert authentication against EJBCA
      key_path: "../../devel/devkeys/superadmin.key"
      cert_path: "../../devel/devkeys/superadmin.pem"

      # Certificate chain
      root_ca_path: "../../devel/devkeys/ManagementCA.pem"

      # EJBCA profile, end entity and CA names
      certificate_profile_name: "PlainSigner"
      end_entity_profile_name: "PlainSigner"
      certificate_authority_name: "ManagementCA"
    issuer: true

Signing Chainloop attestations with EJBCA issued certificates

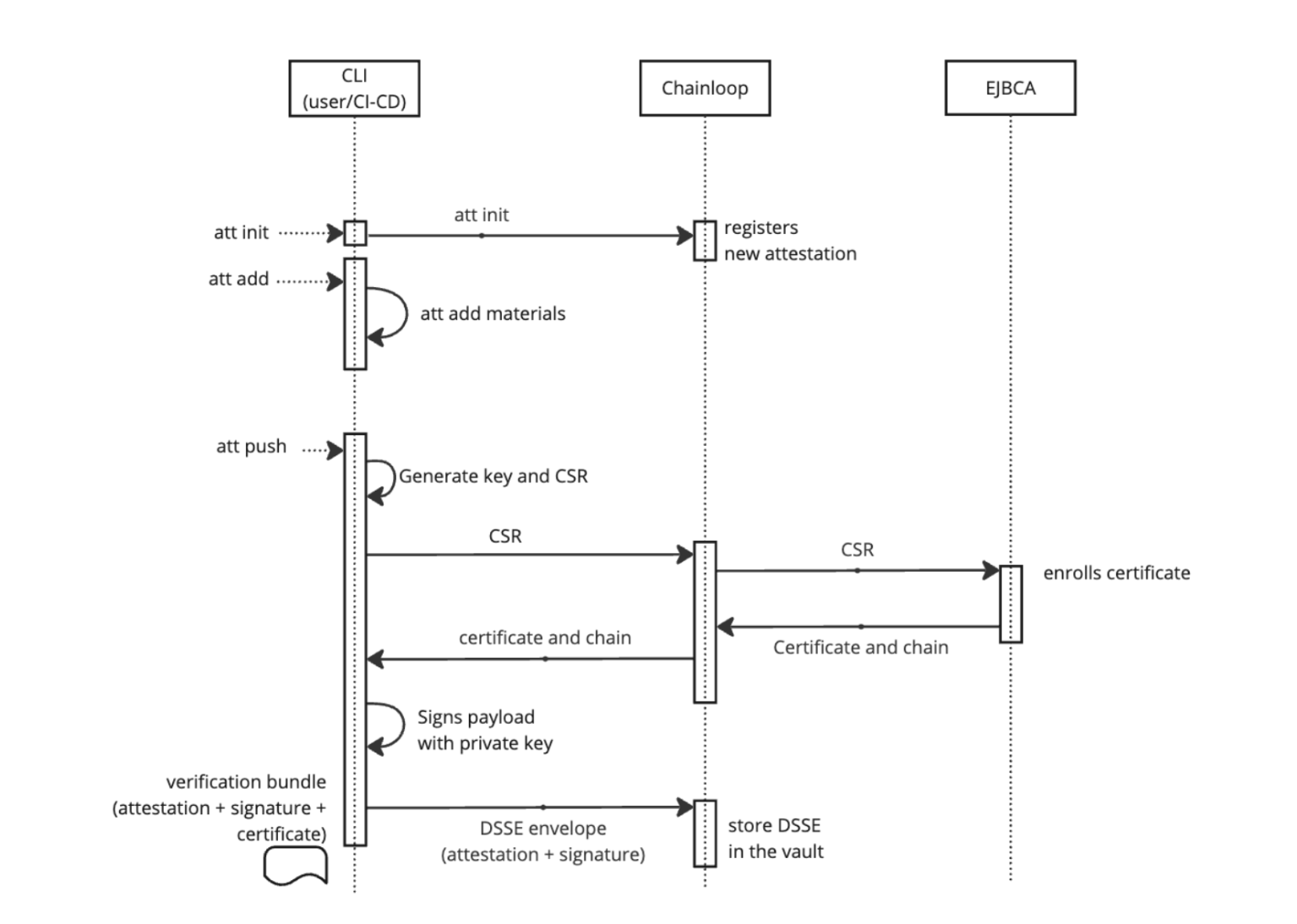

Using the following command (note that no key is provided), the following sequence of events will happen:

Chainloop CLI creates a certificate request, and sends it to Chainloop
Chainloop forwards the request to EJBCA’s v1/certificate/pkcs10enroll API, which generates a new short-lived certificate for signing
Chainloop CLI signs the In-toto payload, and sends the statement to Chainloop for storage.

> chainloop attestation push --bundle bundle.json

Full example

Crafting and signing an attestation.

> chainloop att init --workflow mywf --project myproject
INF Attestation initialized! now you can check its status or add materials to it
┌───────────────────┬──────────────────────────────────────┐
│ Initialized At    │ 25 Jun 24 10:49 UTC                  │
├───────────────────┼──────────────────────────────────────┤
│ Attestation ID    │ 966b2426-e5a6-4805-91ff-e4ea1e95c5ea │
│ Name              │ mywf                                 │
│ Team              │                                      │
│ Project           │ myproject                            │
│ Contract Revision │ 1                                    │
└───────────────────┴──────────────────────────────────────┘

> chainloop att add --value evidence.txt
INF material kind detected kind=ARTIFACT
INF material added to attestation

> chainloop --debug att push --bundle bundle-with-ejbca.json
INF generating Sigstore bundle bundle-with-ejbca.json
INF push completed
┌───────────────────┬──────────────────────────────────────┐
│ Initialized At    │ 25 Jun 24 10:49 UTC                  │
├───────────────────┼──────────────────────────────────────┤
│ Attestation ID    │ 966b2426-e5a6-4805-91ff-e4ea1e95c5ea │
│ Name              │ mywf                                 │
│ Team              │                                      │
│ Project           │ myproject                            │
│ Contract Revision │ 1                                    │
└───────────────────┴──────────────────────────────────────┘
┌────────────────────────────────────────────────────────────────────────────────────┐
│ Materials                                                                          │
├──────────┬─────────────────────────────────────────────────────────────────────────┤
│ Name     │ material-1719312595918293000                                            │
│ Type     │ ARTIFACT                                                                │
│ Set      │ Yes                                                                     │
│ Required │ No                                                                      │
│ Value    │ evidence.txt                                                            │
│ Digest   │ sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 │
└──────────┴─────────────────────────────────────────────────────────────────────────┘
Attestation Digest: sha256:bafaffc629d5ffe4c3b6519b740459db6883a55c6092c438426ded7ec328f135

Storing and inspecting the generated certificate:

> cat bundle-with-ejbca.json | jq -r ".verificationMaterial.certificate.rawBytes" | base64 --decode | openssl x509 -inform DER -outform PEM > signingcert.pem

> cat signingcert.pem | openssl x509 -text
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            6f:42:e2:ec:6d:b3:25:41:97:6d:66:3b:73:fc:dc:d2:cc:67:c7:ce
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: UID=c-0kxd0tu03vo9bdv86, CN=ManagementCA, O=EJBCA Container Quickstart
        Validity
            Not Before: Jun 25 10:49:04 2024 GMT
            Not After : Jun 25 10:49:03 2025 GMT
        Subject: CN=fce05d49-b633-4862-be1d-3345081ecaea
...

Verifying the attestation

Verifying the attestation requires the signing cert extracted from the bundle and the root CA (provided by your organization out-of-band):

> chainloop wf run describe --digest sha256:bafaffc629d5ffe4c3b6519b740459db6883a55c6092c438426ded7ec328f135 --verify true --cert signingcert.pem --cert-chain ../keyfactor/ManagementCA.pem
WRN Both user credentials and $CHAINLOOP_TOKEN set. Ignoring $CHAINLOOP_TOKEN.
┌──────────────────────────────────────────────────────────────────────────────────────────┐
│ Workflow                                                                                 │
├────────────────┬─────────────────────────────────────────────────────────────────────────┤
│ ID             │ eb7b4633-96e2-4efe-b23f-f667f3f7acdc                                    │
│ Name           │ mywf                                                                    │
│ Team           │                                                                         │
│ Project        │ myproject                                                               │
├────────────────┼─────────────────────────────────────────────────────────────────────────┤
│ Workflow Run   │                                                                         │
├────────────────┼─────────────────────────────────────────────────────────────────────────┤
│ ID             │ 966b2426-e5a6-4805-91ff-e4ea1e95c5ea                                    │
│ Initialized At │ 25 Jun 24 10:49 UTC                                                     │
│ Finished At    │ 25 Jun 24 10:59 UTC                                                     │
│ State          │ success                                                                 │
│ Runner Link    │                                                                         │
├────────────────┼─────────────────────────────────────────────────────────────────────────┤
│ Statement      │                                                                         │
├────────────────┼─────────────────────────────────────────────────────────────────────────┤
│ Payload Type   │ application/vnd.in-toto+json                                            │
│ Digest         │ sha256:bafaffc629d5ffe4c3b6519b740459db6883a55c6092c438426ded7ec328f135 │
│ Verified       │ true                                                                    │
└────────────────┴─────────────────────────────────────────────────────────────────────────┘
┌────────────────────────────────────────────────────────────────────────────────────┐
│ Materials                                                                          │
├──────────┬─────────────────────────────────────────────────────────────────────────┤
│ Name     │ material-1719312595918293000                                            │
│ Type     │ ARTIFACT                                                                │
│ Filename │ evidence.txt                                                            │
│ Digest   │ sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 │
└──────────┴─────────────────────────────────────────────────────────────────────────┘
